High Flow & High Pressure Regulators
High Pressure Regulator High Flow Regulators High Flow & High Pressure Regulators

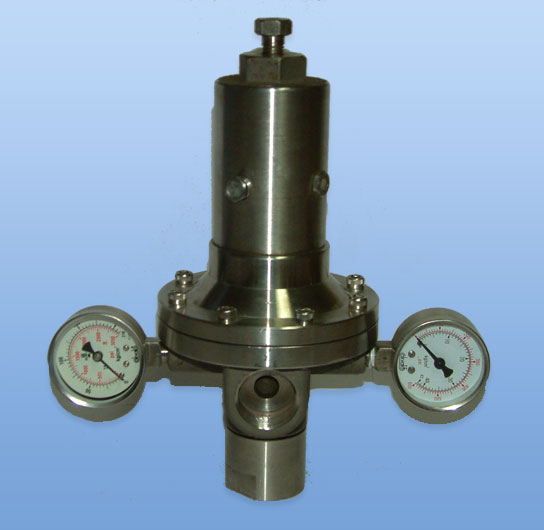

Paarth High Pressure Regulators are specially designed for use in systems where a high delivery pressure is required.

Paarth High Pressure Regulator reduces and regulates the available source pressure until it’s nearest available source pressure.

Paarth High Pressure Regulators are available in many different combinations of materials and thread connections to suit to individual industry requirements.

Specifications:

 Material of Construction

:

 Stainless Steel-304.

 Max. Inlet Pressure

:

 Up to 250 Kg./Cm.Sq.

 Max. Outlet Pressure

:

 Adjustable  Up to 30 Kg. /Cm.Sq.

 Flow Rate

:

 Up to 2500 LPM (150 Cubic Mtr./Hr)

 Standard Connections

:

 1” BSP (F) RH on Inlet & Outlet side

Applications:
  • Fire fighting applications viz. into a DCP truck where nitrogen gas is used to boost the water delivery to reach to a greater distance with a greater force.
  • Gas streams where multiple delivery stations to be monitored with a common pressure control systems.
